Features
  • Additional height provides extra capacity for your goods
  • Built to carry heavy or out of gauge cargoes
  • Heavy duty steel frames and thick plank floors
  • Great for specialized shipments of steel, pipes, drums and machinery
  • With flush folding end frames to allow for efficient stacking
  • Triton’s industry leading new production testing and inspection criteria ensures the highest quality container
  • Backed up by Triton’s global network of supply locations and dedicated leasing and support teams
  • Flexible lease terms to meet your company needs
Download product specification documents

Triton High Cube Flush Folding
Flatracks for lease

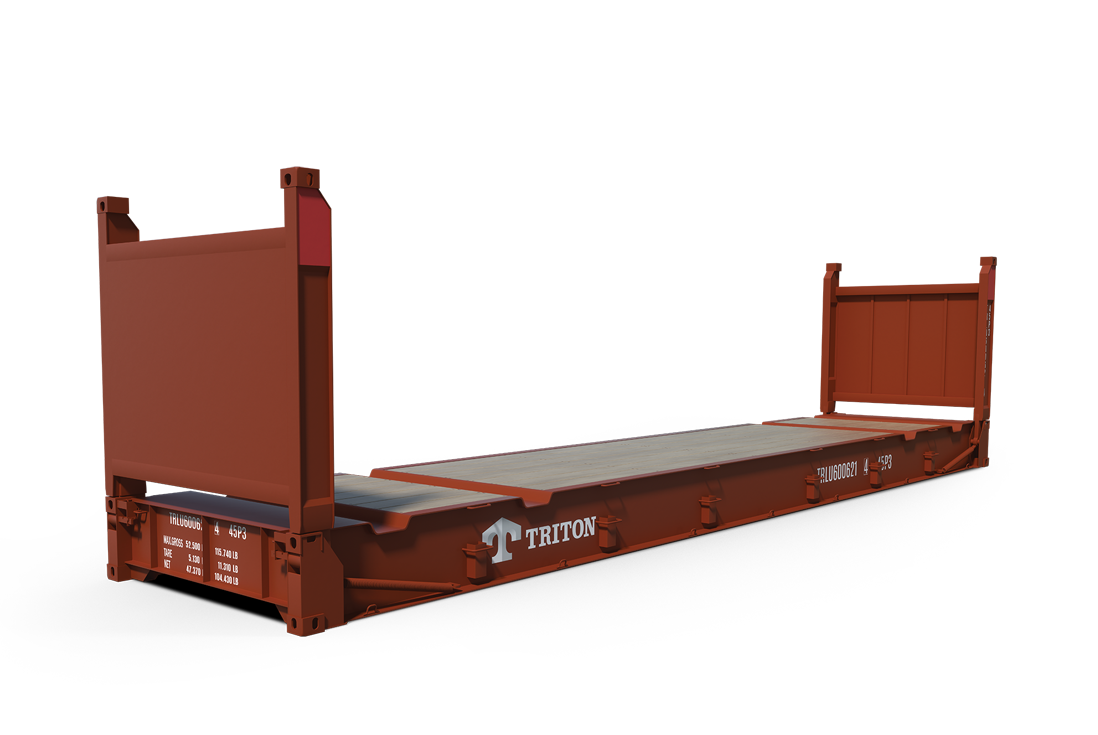

Triton 40ft High Cube Flush Folding Flatracks are designed to hold heavy cargo and oversized loads. They are 40ft long, 8ft wide, 9ft 6.0" high, and have a payload between 47,200 and 104,060 lbs, which allows them to hold larger goods than standard Flatracks.

Triton Flush Folding Flatracks are constructed with steel frames and thick plank floors. They are ideal for holding a wide range of irregular-shaped items that need to be loaded from the top or side, including pipes, machinery, steel, timber, drums, and boats.

At Triton, our global infrastructure and size enable us to operate with the lowest cost ratios in the industry. We supply a range of Flush Folding Flatracks in high-demand hub ports. Contact your local Triton representative for more information.

Dimensions (Metric/Imperial)
External Dimensions
Length (Base bottom casting)
12,192 mm
40’ 0.0”
Width (Base bottom casting)
2,438 mm
8’ 0.0”
Height (End frame up)
2,896 mm
9’ 6.0”

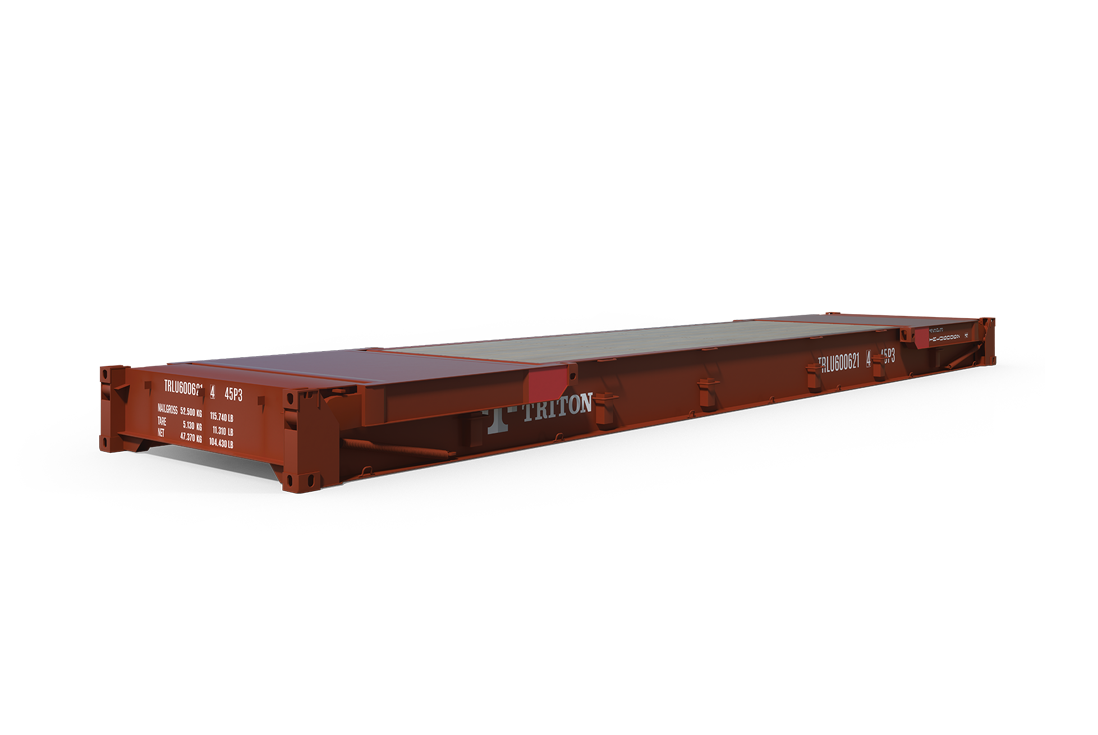

Height (End frame down)
648 mm
2’ 1.5”
Internal Dimensions
Length (Between end panels)
12,182 mm
39’ 11.6”
Width (Over bottom side rail)
2,374 mm
7’ 9.5”
Height (Side rail to top castings)
2,264 mm
7’ 5.1”
Capacity & Weights
Max Gross
52,500 kg
115,740 lbs
Payload
47,200 kg
104,060 lbs
Tare
5,300 kg
11,680 lbs

NOTE: The dimensions and door openings of all containers correspond to ISO standards. However, due to production tolerances, a difference in measurement is possible.
